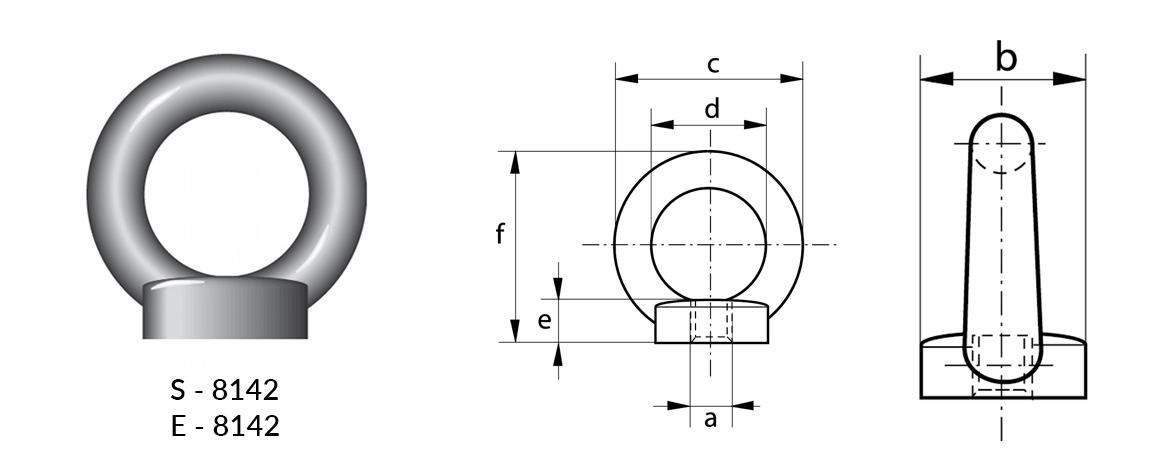

| Working Load Limit | Diameter Thread | Diameter Base | Diameter Eye Outside | Diameter Eye Inside | Thickness Base | Height | Weight per 100 pcs. |
|---|---|---|---|---|---|---|---|
| Tons | a MM |
b MM |
c MM |
d MM |
e MM |
f MM |
Kg |
| 0.07 | M6 | 20 | 36 | 20 | 8.5 | 36 | 4.2 |
| 0.14 | M8 | 20 | 36 | 20 | 8.5 | 36 | 5.2 |
| 0.23 | M10 | 25 | 45 | 25 | 10 | 45 | 9.4 |
| 0.34 | M12 | 30 | 54 | 30 | 11 | 53 | 16 |
| 0.49 | M14 | 35 | 63 | 35 | 13 | 60 | 22 |
| 0.7 | M16 | 35 | 63 | 35 | 13 | 62 | 24 |
| 1.2 | M20 | 40 | 72 | 40 | 16 | 71 | 35.2 |
| 1.5 | M22 | 45 | 81 | 45 | 18 | 80 | 58.6 |
| 1.8 | M24 | 50 | 90 | 50 | 20 | 90 | 70.6 |
| 2.5 | M27 | 50 | 90 | 50 | 20 | 90 | 102 |
| 3.2 | M30 | 65 | 108 | 60 | 25 | 109 | 132 |
| 4.3 | M33 | 65 | 108 | 60 | 25 | 110 | 170 |
| 4.6 | M36 | 75 | 126 | 70 | 30 | 128 | 208 |
